Feature: This line is used for pelletizing PET, PP, PE, PS,PVC
Extrusion Model | SJ-90/30B 单管 | SJ-65/30B 单管 | SJ-90/30A 双管 |
Suitable pipe range | 75-200 | 30-100 | 30-100B |
Sizing sink | SGZL-200 | SGZL-100 | SGZL-100B |
Haul-off machine | SLQ-200 | SLQ-100 | SLQ-100B |
Winding machine | SQ-200 | SQ-100 | SQ-100 |
PE pipe has good flexibility, high impact strength and strong shock resistance.It is popular for gas, water , electricity lines and so on.

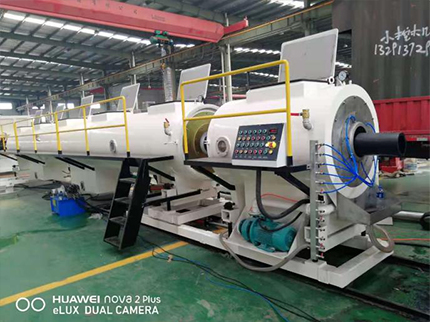

The composition of PE pipe production line: automatic feeder, drying hopper, single screw extruder, color line extruder, mold, vacuum tank, spray tank, haul off machine, winder

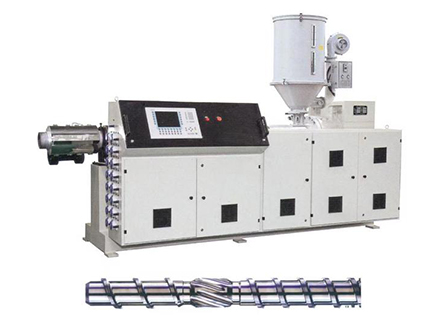

Extruder Screw and Barrel: Screw and Barrel Material 38CrMoAlA, Nitriding, Surface Chrome plate, Nitriding Layer Thickness:0.5~0.7mm, Surface Rigidity:800~900HV. |

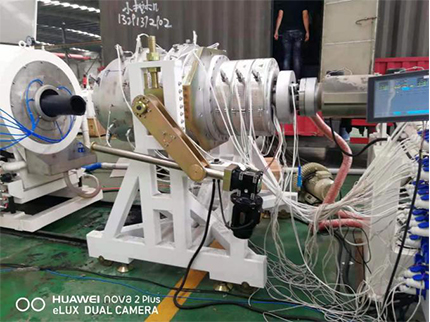

 Mold Extrusion mold material: 40Cr. Calibration mold material: Wearable tin bronze ZQSn5-2-5. |
Vacuum Tank Calibration Tank Length: 6m, Adopt 3mm thickness stainless steel board, Adopt 0.75KW Gearbox Speed Reducer Motor, Adjusting |
 Spray tank Calibration Tank Length: 6m, Adopt 3mm thickness stainless steel board, Adopt 0.75KW Gearbox Speed Reducer Motor, Adjusting |

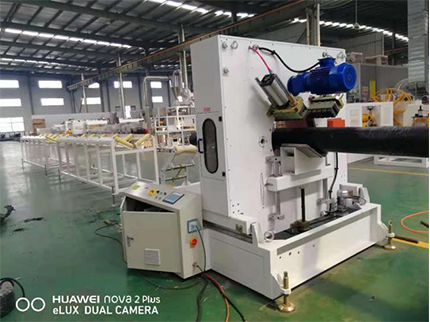

Haul-off Haul-off Bracket Length 1200mm, Adopt Pneumatic gas cylinder, Adopt 1.5kw*2sets ABB Inverter, Belt 80mm*2500mm. |

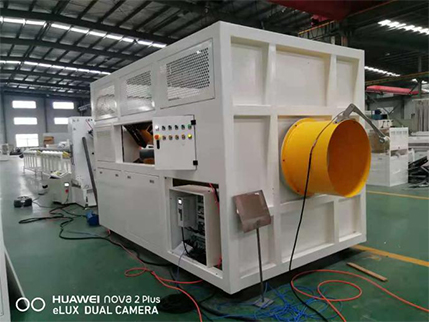

 Cutter Cutting type:Circular cutting Power of motor:1.5 kw Air compressed pressure:0.5~0.7 Mpa |
Automatic palletizer Motor: servo motor Speed adjustment mode:PLC Grab way: vacuum chuck |
