PPR pipe has good flexibility, high impact strength and strong shock resistance.It is popular for feedwater. The composition of PPR pipe production line: automatic feeder, drying hopper, single screw extruder, color line extruder, mould, vacuum tank, spray ta
PPR pipe has good flexibility, high impact strength and strong shock resistance.It is popular for feedwater.
The composition of PPR pipe production line: automatic feeder, drying hopper, single screw extruder, color line extruder, mould, vacuum tank, spray tank, haul off machine, stacker
| Model | Pipe specifications | Supporting extruder | Extrusion capacity | Total installed power |
| PEG-63 | Φ20-Φ63 | SJ65/33 | 80-100 | 100 |
| PEG-110 | Φ20-Φ110 | SJ65/33 | 150-200 | 130 |
PEG-160 | Φ63-Φ160 | SJ65/33 | 200-250 | 145 |
| PEG-250 | Φ75-Φ250 | SJ75/33 | 250-350 | 210 |
| PEG-315 | Φ90-Φ315 | SJ75/33 | 250-350 | 260 |
| PEG-450 | Φ160-Φ450 | SJ90/33 | 450-550 | 380 |
| PEG-630 | Φ315-Φ630 | SJ120/33 | 700-900 | 530 |
Screw and Barrel: Screw and Barrel Material 38CrMoAlA,Nitriding, Surface Chrome plate, Nitriding Layer
Thickness:0.5~0.7mm, Surface Rigidity:800~900HV.
Extrusion mold material: 40Cr. Calibration mold material: Wearable tin bronze ZQSn5-2-5.
Calibration Tank Length: 6m, Adopt 3mm thickness stainless steel board, Adopt 0.75KW Gearbox Speed Reducer Motor, Adjusting
Calibration Tank Length: 6m, Adopt 3mm thickness stainless steel board, Adopt 0.75KW Gearbox Speed Reducer Motor, Adjusting
Adopt Pneumatic gas cylinder,
Adopt 1.5kw*2sets ABB Inverter,
Belt 80mm*2500mm.
Cutting type:Saw cutting
Power of motor:1.5 kw
Air compressed pressure:0.5~0.7 Mpa

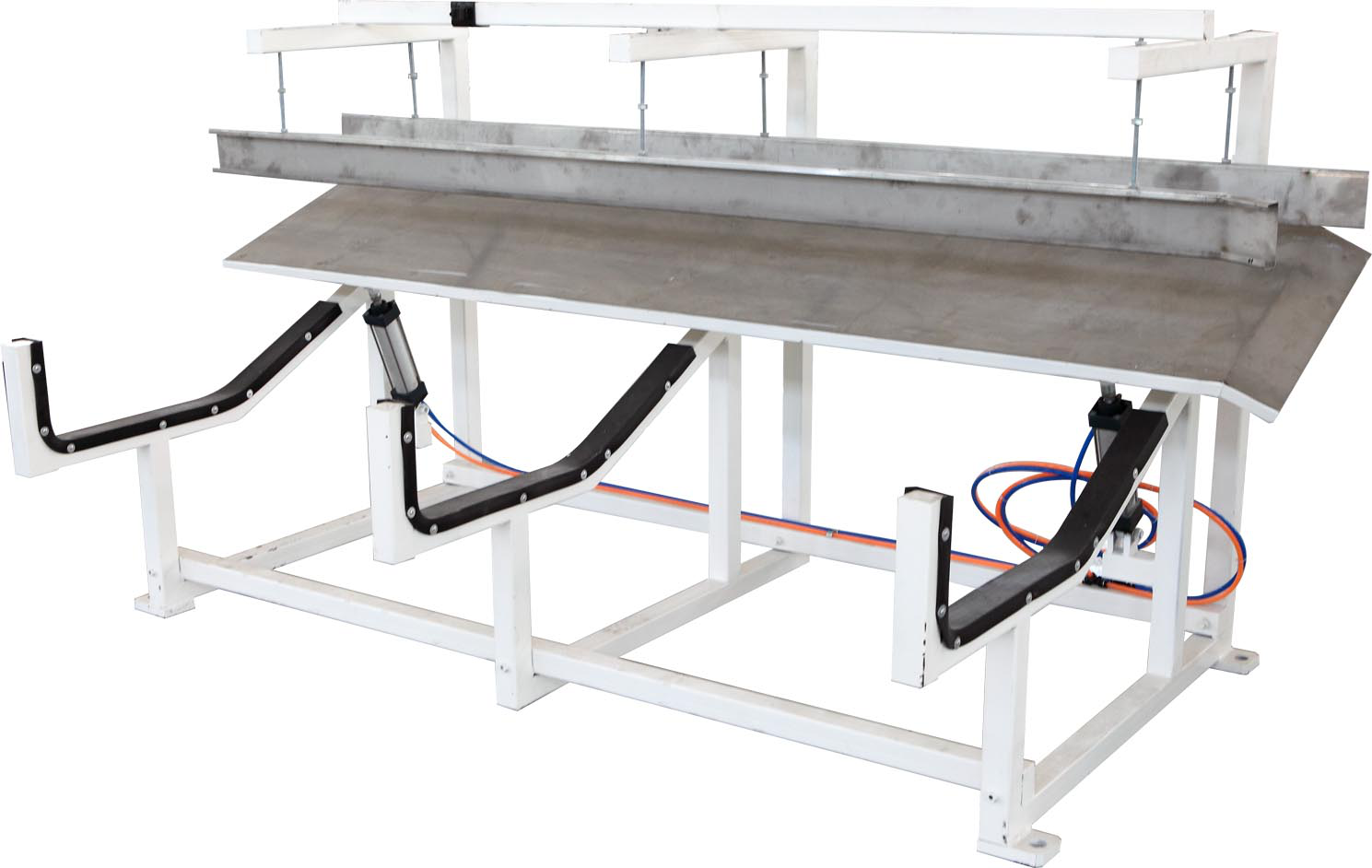

Length of stacker:4500mm
Plate material:SUS304
Discharging control:air cylinder
