PVC pipe production line is mainly used for the production of water pipe,conduit pipe and so on.The composition of PVC pipe production line:mixer ,screw loader,twin screw extruder, mould, vacuum tank,, haul off machine, cutter machine,stacker.Extruder:Screw and Barrel: Screw and Barrel Materia
| Model | PVCG-2-50 | PVCG-4-25 | PVCG-110 | PVCG-160 | PVCG-250 | PVCG-315 | PVCG-400 | PVCG-630 |
| Supporting Extruder | SJZ51/105 | SJZ65/132 | SJZ51/105 | SJZ65/132 | SJZ65/132 | SJZ80/156 | SJZ80/156 | SJZ92/188 |
| Pipe Range(mm) | Φ16-Φ50 | Φ16-Φ25 | Φ20-Φ110 | Φ50-Φ160 | Φ50-Φ250 | Φ110-Φ315 | Φ160-Φ400 | Φ315-Φ630 |
The length of vacuum calibration tank | 4000 | 4000 | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Hual-off speed(m/min) | 1.2-12 | 1-10 | 0.6-6 | 0.5-5 | 0.4-4 | 0.3-3 | 0.2-2.5 | 0.2-1.5 |
| Installed capacity(kw) | 67 | 85 | 67 | 85 | 95 | 125 | 135 | 255 |
| Total length(mm) | 17000 | 18000 | 17000 | 18000 | 20000 | 20500 | 28000 | 30000 |

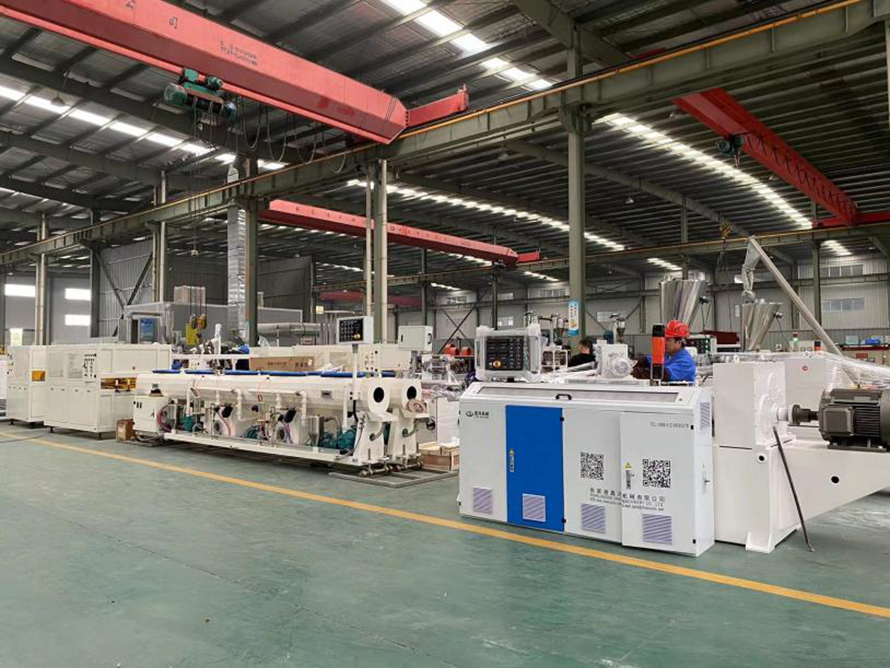

PVC pipe production line is mainly used for the production of water pipe,conduit pipe and so on.

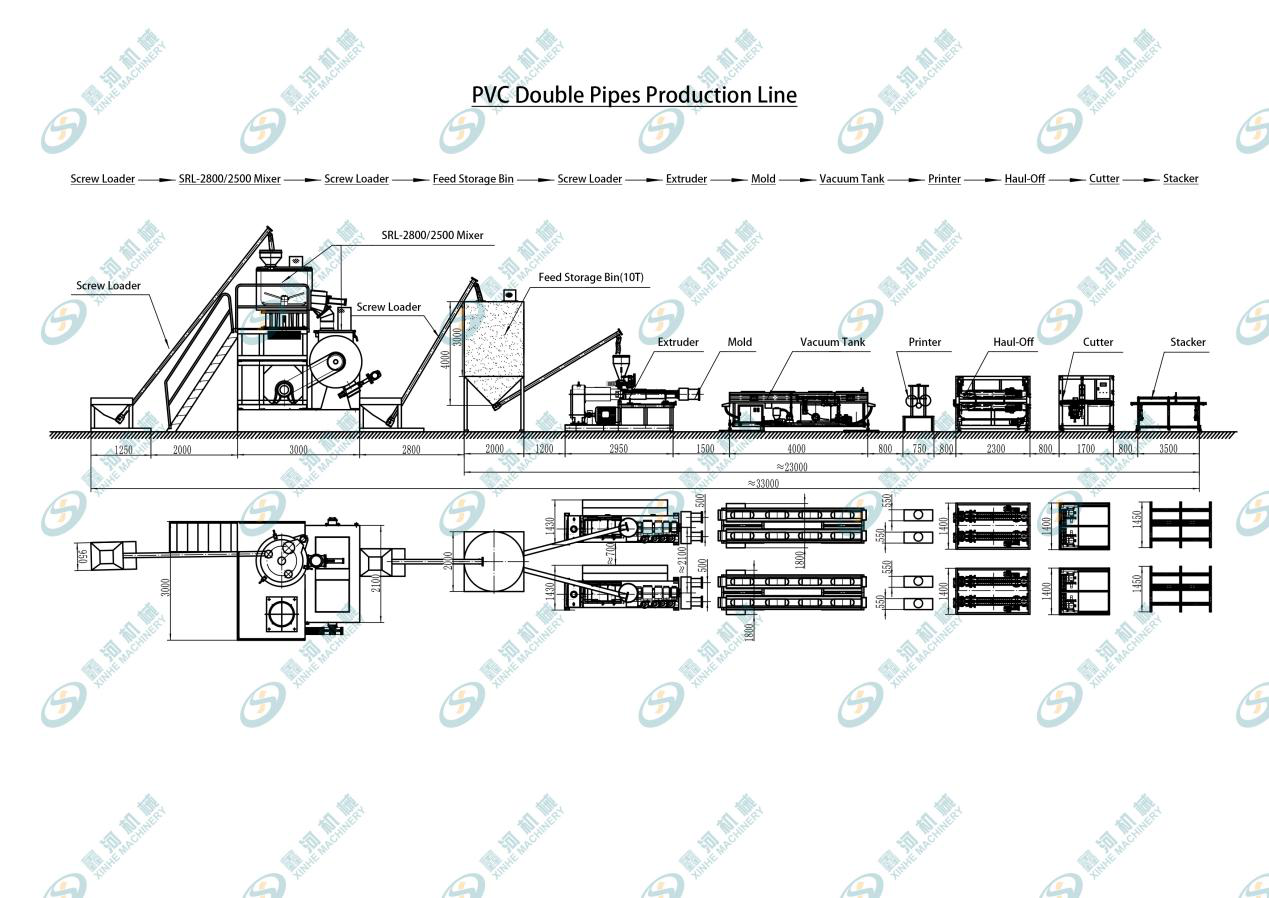

The composition of PVC pipe production line:mixer ,screw loader,twin screw extruder, mould, vacuum tank,, haul off machine, cutter machine,stacker.

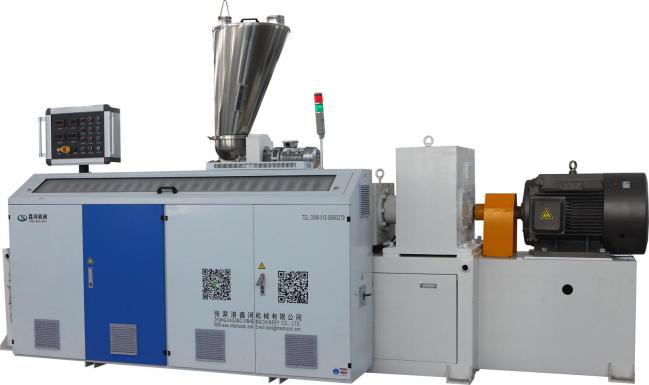

Screw and Barrel: Screw and Barrel Material 38CrMoAlA,Nitriding, Surface Chrome plate, Nitriding Layer
Thickness:0.5~0.7mm, Surface Rigidity:800~900HV.

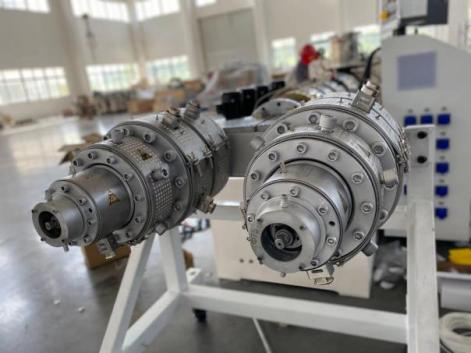

Extrusion mold material: 40Cr.
Calibration mold material: Wearable tin bronze ZQSn5-2-5.
Calibration Tank Length: 6m, Adopt 3mm thickness stainless steel board, Adopt 0.75KW Gearbox Speed Reducer Motor, Adjusting
Adopt Pneumatic gas cylinder,
Adopt 1.5kw*2sets ABB Inverter,
Belt 80mm*2500mm.

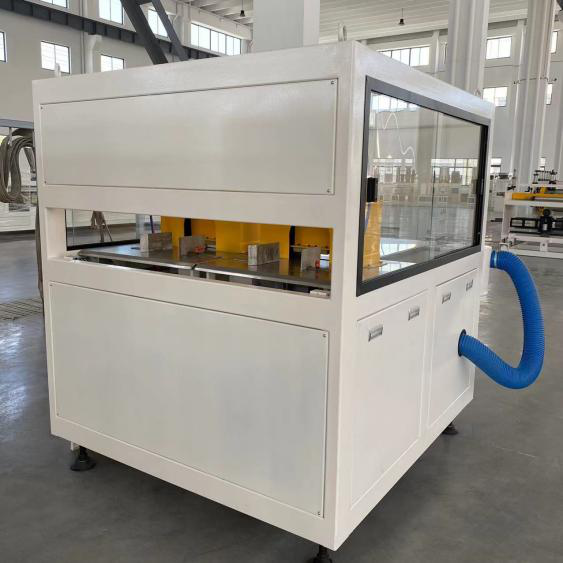

Cutting action controller : PLC
The impact method:pneumatic impact
Cutter structure:Saw type
Power:17KW
Max tempeerature of hot air:350℃
Compresses air pressure:0.4-0.6MPA
