Wall panel production line is mainly used to produce PVC wall panel . It has a wide range of application in wall decoration.It uses a laminating machine to treat the surface and can have the style desired by all parties The working process of wall p
| Extruder Model | Motor power | Auxiliary equipment power | Vacuum pump power | Haul-off speed | Cutting machine power | Length/Width |
| SJSZ51 | 15kw | 180-240 | 5.5kw | 1.5kw*2 | 1.5kw | 16*2.5m |
| SJSZ55 | 22kw | 180-300 | 5.5kw | 1.5kw*2 | 1.5kw | 17*2.5m |
SJSZ65 | 37kw | 180-400 | 5.5kw | 1.5kw*2 | 1.5kw | 20*2.5m |
| SJSZ80 | 55kw | 180-600 | 7.5kw | 4kw*2 | 1.5kw | 21*2.5m |
Wall panel production line is mainly used to produce PVC wall panel . It has a wide range of application in wall decoration.It uses a laminating machine to treat the surface and can have the style desired by all parties
The working process of wall panel machine:
Raw material → double screw extruder → vacuum table → haul-off machine
→ cutting machine → stacker
Electric control cabinet: the main inverter and feeding frequency converter
Motor、pump: main motor 75KW,feeder motor 1.5KW
Capacity:300-400kg/h
Mould material :Steel45Cr
Inner treatment:Polish
Length: 4-6Meters, Table fore-and-aft Move: Adopt 1.5KW Gearbox Speed Reducer Motor Adjusting Distance equal to 800mm. Table Adjusting: Up-and-down adjusting adopt worm reducer & screw adjusting
Above Haul-off Bracket Compaction Mode: Adopt pneumatic gas
cylinder, Cut Motor Power: 0.75KW*1PC.
Cutting action controller : PLC
The impact method:pneumatic impact

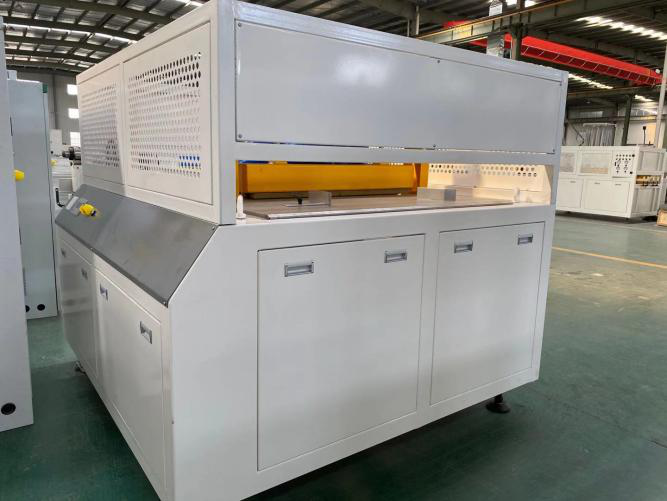

Cutter structure:Saw type
Stacker length 4m, 1.5mm stainless steel board,
Stacking by Gas cylinder, Adopt limited switch send out cutting signal.
